ATTO Products

DNA Electrophoresis

Purpose and Application

​

• Agarose gel electrophoresis system for DNA

• Analysis of PCR-amplified fragments

• Separation of nucleic acids

​

Features

​

• Hi-Speed（High voltage 135V） electrophoresis available、alarm timer function

•  18V / 25V / 35V / 50V / 70V / 100V / 135V constant voltage

• Timer setting up to 99 hr 99 min

• Safety: When the lid is opened, no current flows.

• Including 3 types of Gel tray (60×60mm / 120×60mm / 120×120mm)

• Heat resistant gel tray (-40℃ ~ 135℃)

• Heat resistant comb (-20℃ ~ 115℃)

• Including 4 types of comb (Wide: 25/18/13 wells, Small: 11/8/6/3/2 wells)

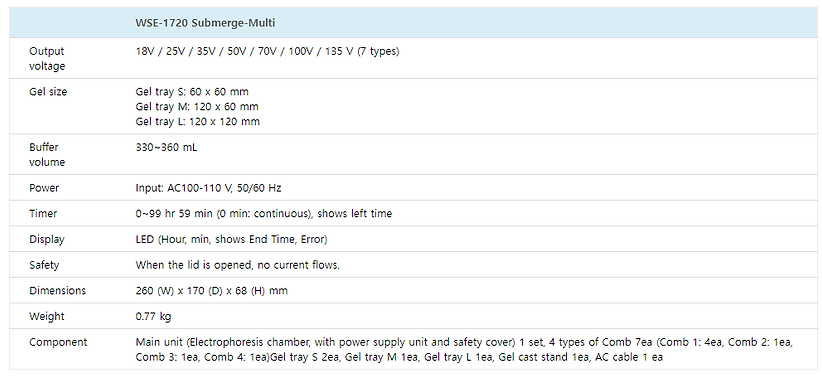

Specification

Ordering Information
